> NRP-C2403

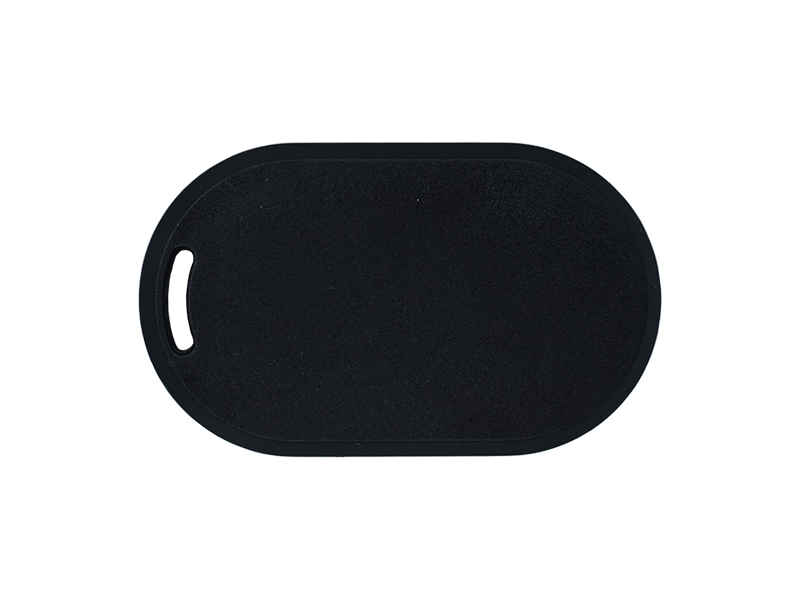

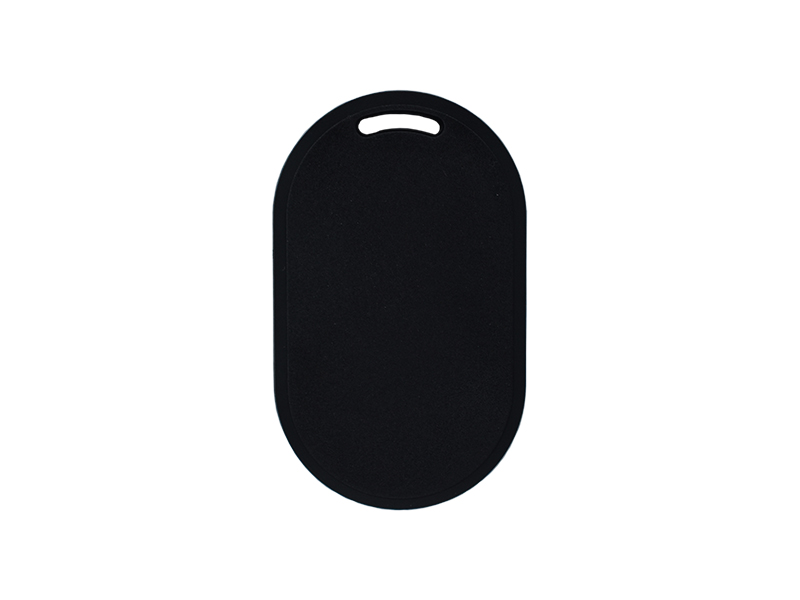

Product Name:NRP-C2403
Product introduction：2.4GHz active card, with button function, power saving mode, trigger alarm, etc., can be customized.
product details
| Features | |
| 1 | Small and portable, beautiful and generous |
| 2 | The surface is smooth and clean, so there is no need to worry about scratching items |
| 3 | ABS tough shell, compressive and anti-drop |
| 4 | Low power consumption, long service life, replaceable battery |
| 5 | One-key alarm, one-key for help, one-key to find objects |
| Specification | |
| Frequency | 2.40GHz~2.45GHz |
| Sensitivity | -90dBm |
| SOS | Support |
| Working method | Reading method: omnidirectional reading, 360° no dead angle |
| Distance | 0~30m with NRP-R240x active reader |
| Protection | IP54 |
| Battery | CR2032, replaceable |
| Working voltage | 3V |
| Working current | ≤18mA |
| Standby current | ≤5μA |
| Battery life | 3 years |
| Working TEMP | -20℃ ~ 75℃ |
| Size | 55mm*40mm*8mm |
| Weight | 35g |
